Cold Climate Heat Pump
Ducted Air-source Cold Climate Heat Pump
- Efficiency：Up to 20 SEER 10.5 HSPF
- Operates in outdoor temperature -30 °C to 54.5 °C
- Full performance: Down to -10°C
- K-Quiet: 56dB (A) when operates
- Flexibility: Pair with any popular brand furnace
- Environment: House, Cottage, Restaurant, Office
Previous
Next
Features
01
Adopt two-stage compression EVI technology,
full performance capacity even in -10 °C.
02
Compatible with most standard 24V thermostat in the market, including Ecobee thermostat and Google Nest thermostat.
03
Inverter compressor technology, quieter, more comfortable, more energy saving.
04
Compact space saving design. Perfect for installation with space limitation such as zero-lot-line house.
05
Great flexibility: Compatible with most popular brands gas furnaces, provide extra heat supply during cold winter (when < -10 °C) without extra spending.
Cold Climate Units Collection

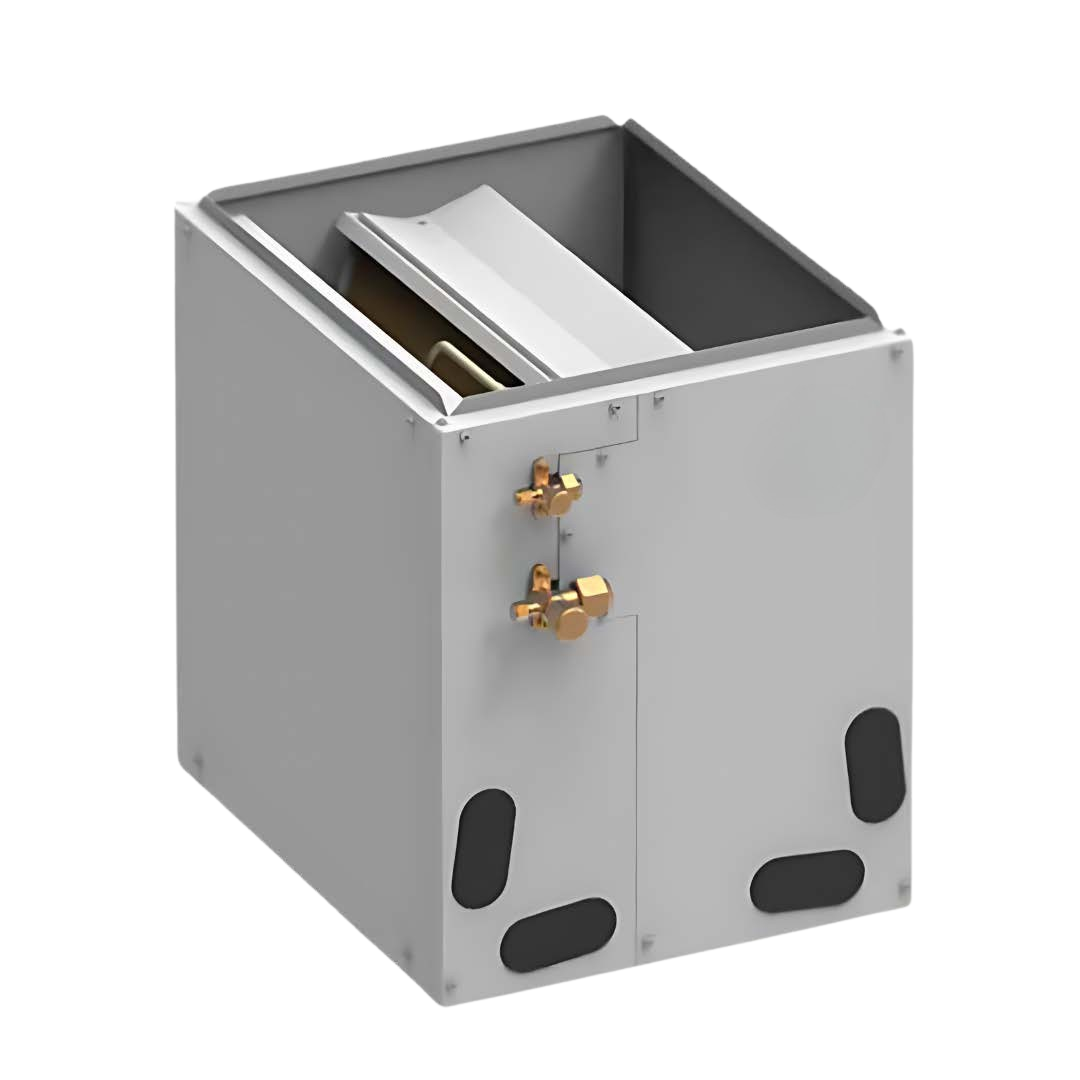

A Coil

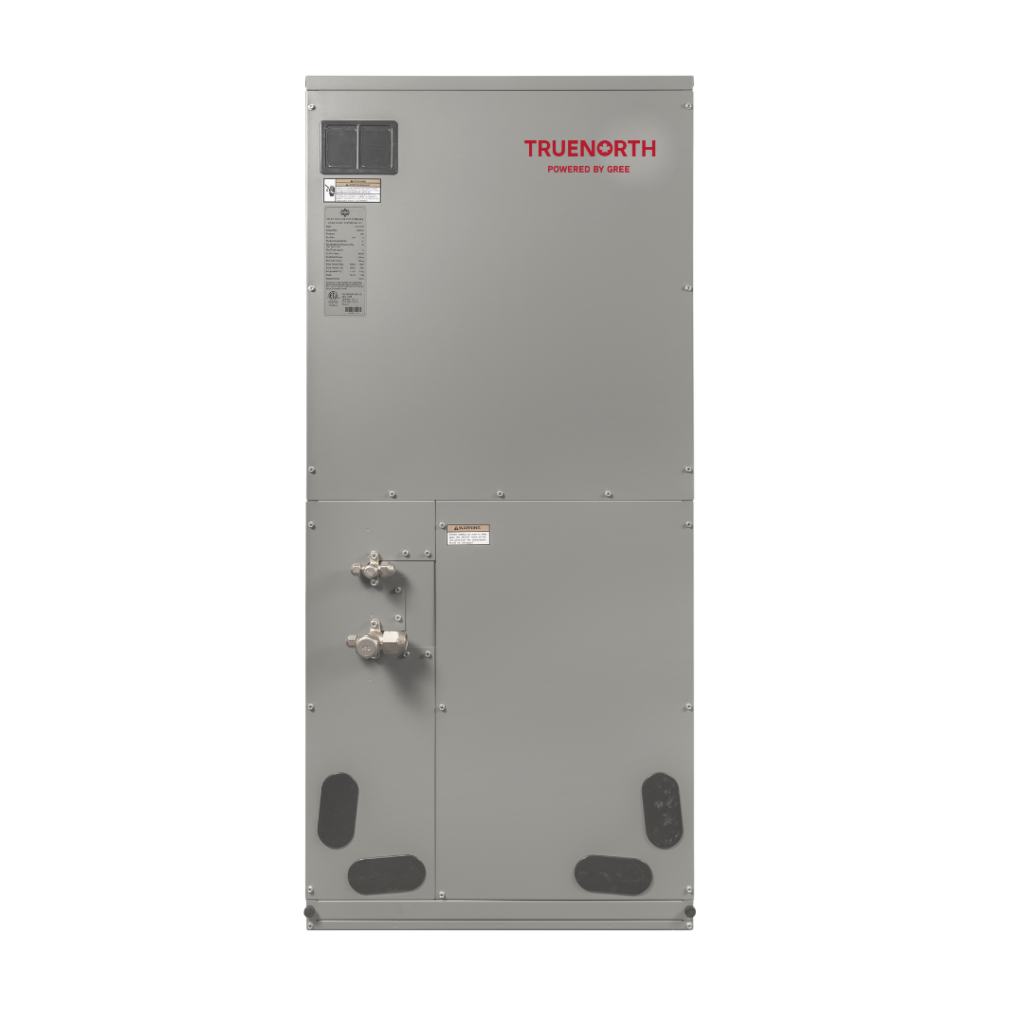

Air Handler
2-3 Ton Heat Pump

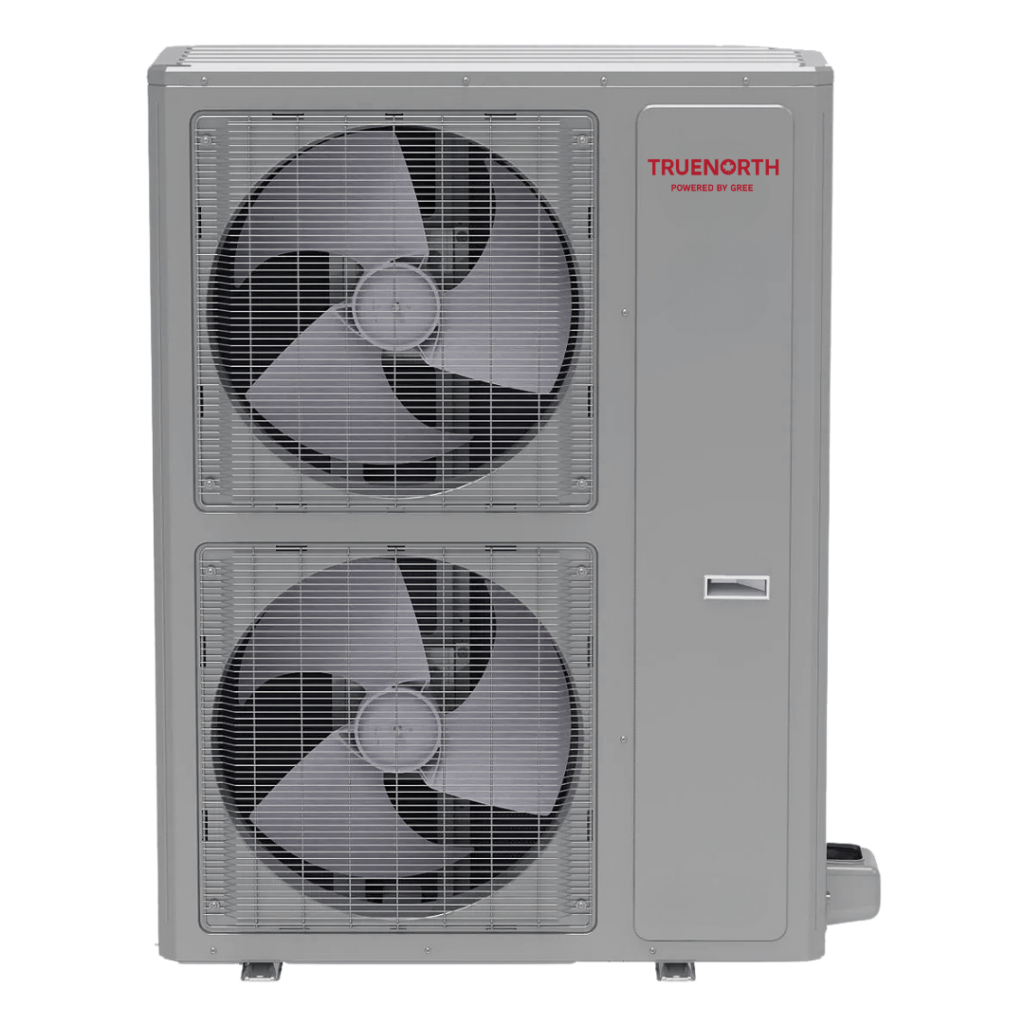

4-5 Ton Heat Pump

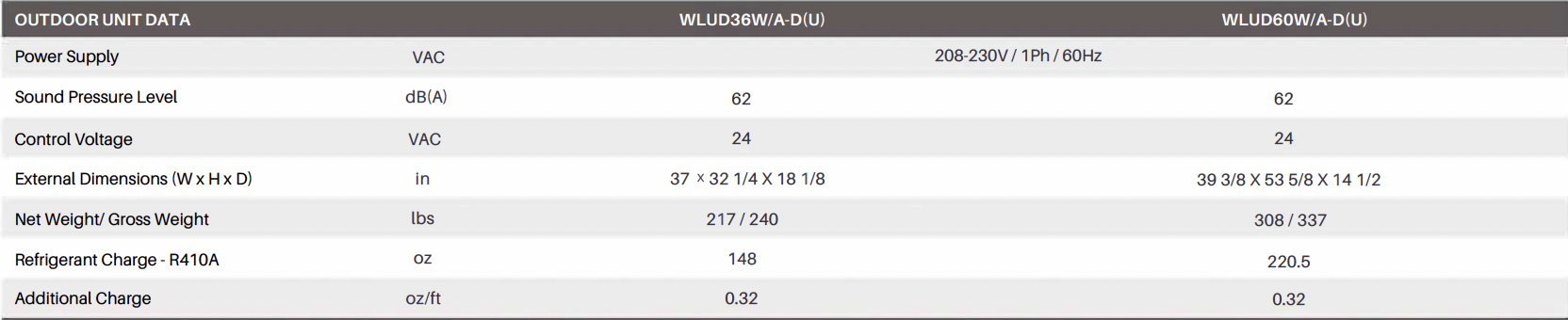

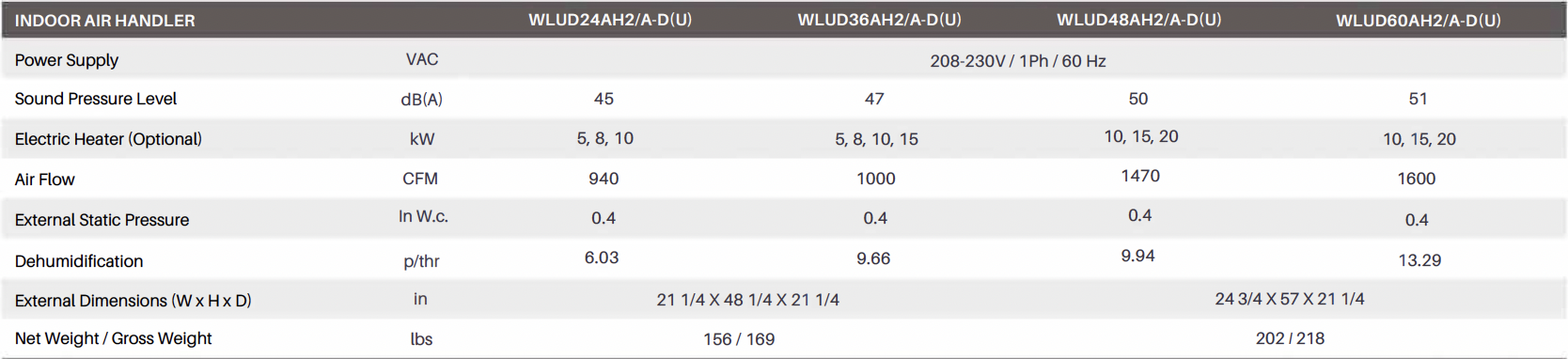

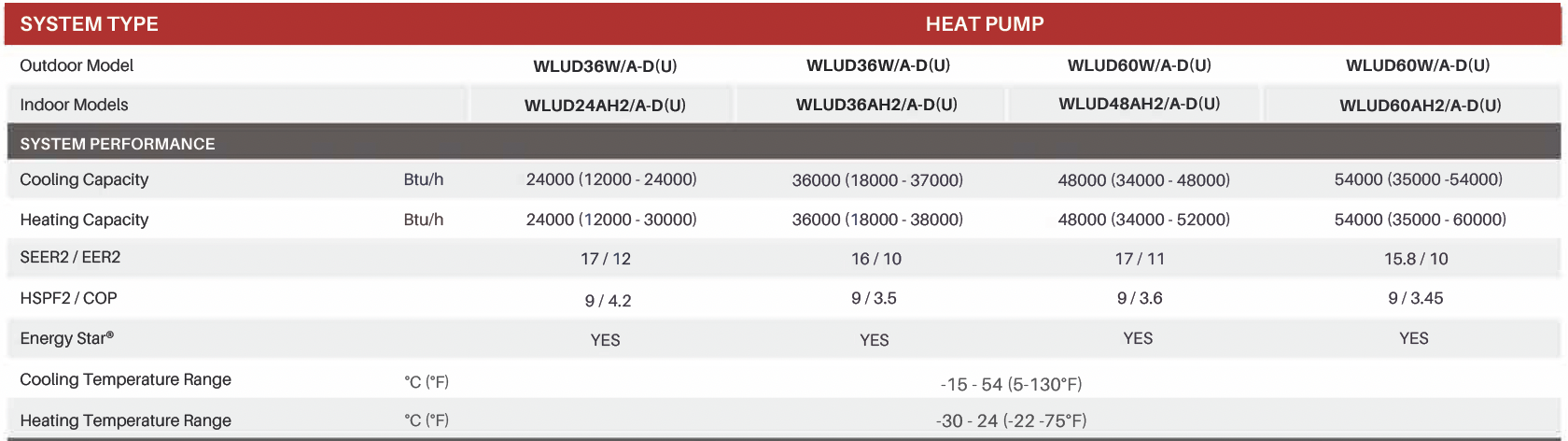

Performance Data
TrueNorth_Cold_Climate_Sales_Brochure.pdf
Heat Pump System
Heat Pump
Air Handler
A coil & Refrigerant Piping
Heat Pump System
Heat Pump
Air Handler
A coil & Refrigerant Piping
Technical Documents
Submittals
Submittal-ColdClimate-WLCAT24F/NaA + WLUD36W/A-D(U)
Submittal-ColdClimate-WLCAT36F:NaA + WLUD36W:A-D(U)
Submittal-ColdClimate-WLUD24AH2:A-D(U) + WLUD36W:A-D(U)
Submittal-ColdClimate-WLUD36AH2:A-D(U) + WLUD36W:A-D(U)
Submittal-ColdClimate-WLCAT48H:NaA+WLUD60W:A-D(U)
Submittal-ColdClimate-WLCAT60H:NaA + WLUD60W:A-D(U)
Submittal-ColdClimate-WLUD36W:A-D(U)
Submittal-ColdClimate-WLUD60W:A-D(U)
Submittal-Cased-A-Coil-WLCAT36F/NaA
Submittal-Cased-A-Coil-WLCAT60H/NaA
Kinghome Heat Pumps are eligible for
Canadian federal and local rebate programs.
Ontario up to $7,500† back
